JEEP WRANGLER JL3.5" LIFT KIT.DONE RIGHT.
There's a reason the 3.5" lift is the most popular build on the JL. It's the sweet spot — 35-inch tires, real trail capability, still daily drivable. Done correctly, it transforms what the JL is capable of. Done incorrectly, it's the most common source of death wobble we see come through our doors.
Free Build Consult
Tell us about your JL — we'll build you a straight quote
What a True 3.5" JL Lift Actually Involves
A 3.5" lift on a Jeep Wrangler JL is not a bolt-on afternoon project. It's a geometry correction project that happens to include a lift kit. At 3.5 inches of lift, the factory geometry assumptions built into your JL's suspension no longer apply. The track bar angle changes. The control arm angles change. The caster angle changes. If those geometry issues aren't corrected at install, you will feel them — on the highway, in a straight line, at speed.
A $3,000 King coilover kit installed without UCAs and track bar correction will give you death wobble and a wandering front end. A $900 ReadyLIFT kit installed correctly with proper geometry correction will drive straight, handle predictably, and last. The components matter. The installation matters more.

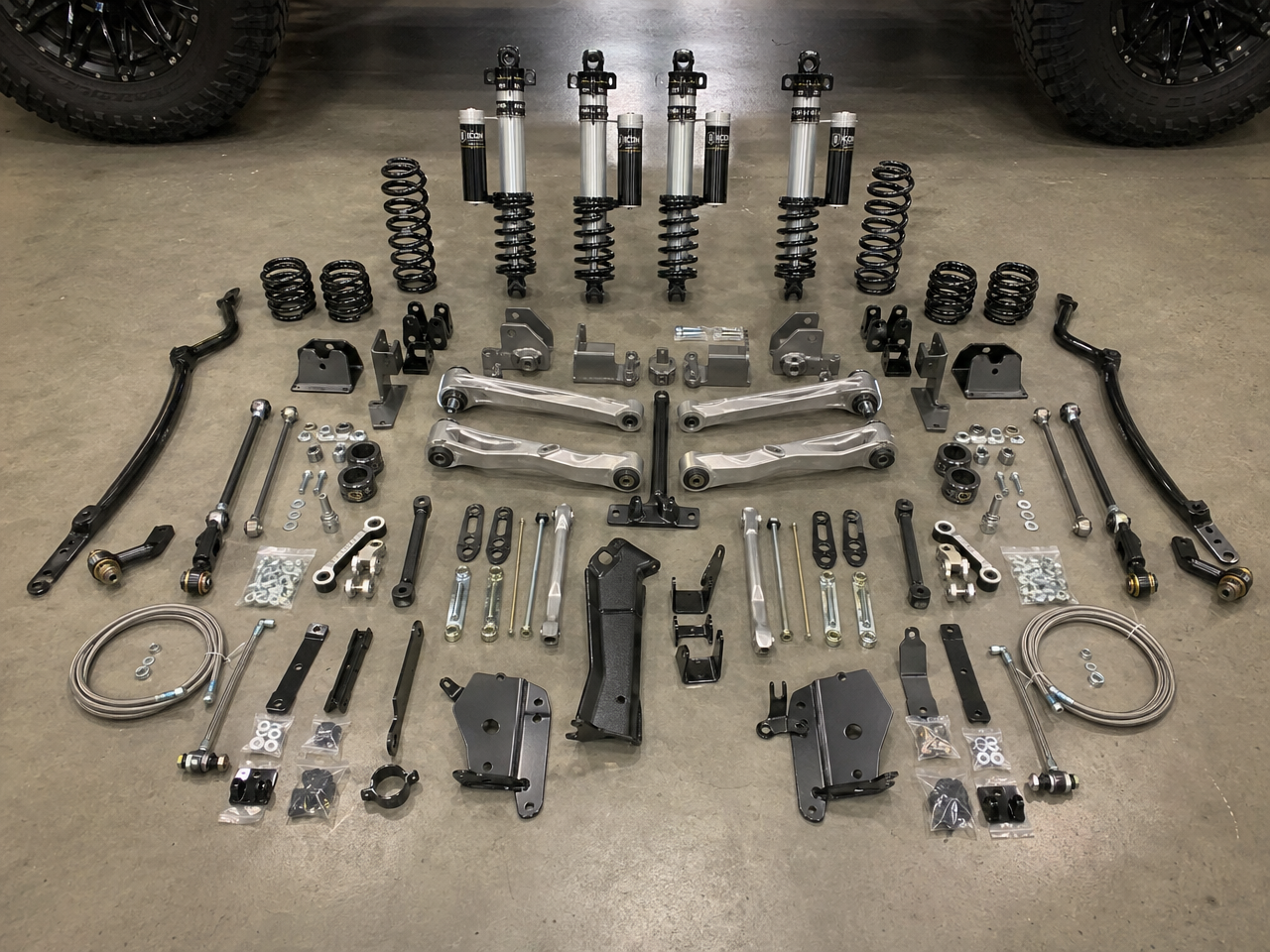

The Lift Kit
Coilover or coil spring upgrade front and rear. Quality matters — a ReadyLIFT, Rough Country Vertex, and a King coilover are not the same product at three different price points. We'll talk through the options based on your use case and budget before we order anything.
Upper Control Arms
At 3.5 inches, factory UCAs create a caster angle that makes the JL wander at highway speed and increases death wobble susceptibility. Aftermarket UCAs — adjustable, with quality ball joints — restore proper caster geometry. Any shop that tells you otherwise is cutting corners.
Track Bar & Drop Bracket
The track bar locates the front axle laterally. At 3.5 inches the factory track bar angle creates lateral axle movement under load. A track bar drop bracket or adjustable track bar corrects this. This is the single most common missing component on bad JL lift installs — and the single most common cause of death wobble.
Extended Sway Bar End Links
The factory sway bar end links are too short at 3.5 inches of lift. Running them means binding in the suspension at full droop — which defeats the purpose of the lift and accelerates wear on the sway bar itself.
Brake Line Extensions
At 3.5 inches the factory brake lines are at or near their stretch limit. Extended brake lines are a safety item, not an upgrade. We do not skip these. We don't offer it as an option. It's part of the job.
Post-Lift Alignment
Every lift install we do ends with a full 4-wheel alignment. Not optional. Not a separate appointment. Part of the job. A JL that leaves our shop without a post-lift alignment is not a job we did.
What This Build Unlocks — and Where It Stops
Most shops skip this section because they're afraid of underselling you. We'd rather tell you the truth. A 3.5" lift on a JL with 35-inch tires puts you in a specific capability range. Understanding that range helps you decide if this is the right build for how you actually use your Jeep — not how you imagine you might use it someday.
✓ Handles Confidently
- Forest service roads, fire roads, and maintained dirt trails
- Moderate rock gardens where the line is clear
- Mud holes and ruts up to 18–24 inches deep
- River crossings with solid bottoms at reasonable depth
- Most trails rated Easy to Moderate
- Sand and desert terrain where clearance matters
- Overlanding — camp roads, forest camping, everything short of technical
- Daily driving, highway, school pickup — lives in both worlds
✕ Where It Reaches Its Limit
- Technical rock crawling where axle placement and max flex matter
- Deep mud where 35s start spinning before the truck moves
- Serious flex-dependent obstacles where factory axle geometry limits you
- Trails rated Difficult or above where a locker is necessary
- Terrain where you're regularly putting the skid plates to work
If your honest answer is fire roads, camping a few times a year, and wanting the truck to be capable for what you actually do — this build is exactly right. If you're watching King of the Hammers footage and that's genuinely where you want to go — keep reading.
What Comes Next If You Want More
We're not going to tell you to buy a bigger lift if you don't need one. But if your trail ambitions are bigger than what a 3.5" build covers, here's what the progression looks like — and what each step unlocks. If you're thinking about Phase 3 eventually, tell us before we quote Phase 1. We'll make component decisions that don't have to be undone later. That conversation costs nothing and could save you thousands.
Phase 1 — Current Build
3.5" lift, 35-inch tires, UCAs, track bar correction, extended end links, brake line extensions, alignment. The sweet spot for daily drivers who wheel. Done right, most owners are satisfied for years.
- Easy to Moderate trails with confidence
- Overlanding and camp road capability
- Real-world daily drivability retained
Phase 2 — Serious Trail Truck
4.5"–5" lift, 37-inch tires. Regearing from 3.45 to 4.10 becomes a genuine recommendation — the difference in drivability and drivetrain longevity at this tire size is significant. Long arm conversion worth considering.
- Moderate to Difficult rock trails
- Deeper mud and rut terrain
- Trails rated Difficult where clearance was limiting
Phase 3 — Purpose-Built
Long travel suspension, 37"–40" tires. Dana 44 front axle starts becoming the limiting factor. Chromoly shafts become a necessity. Lockers front and rear move from nice-to-have to essential. Not a daily driver in the traditional sense.
- Technical rock crawling most enthusiasts aspire to
- High-speed desert running
- Expert trails where the truck stops being the limiting factor
What This Build Does Not Require at 3.5"
We'll also tell you what you don't need — because some shops will try to sell you everything at once.
Regearing
Not mandatory at 3.5" on 35s. The JL's 3.45 factory gears handle 35s reasonably well, though 4.10s are a noticeable improvement especially for towing. We'll tell you the tradeoff and let you decide.
Long Arm Conversion
Not necessary at this lift height. The factory control arm mounting points work at 3.5" with proper aftermarket UCAs. If you tell us Phase 3 is your eventual destination, that conversation changes.
Differential Drop
Typically not required on the JL at 3.5 inches. We'd rather tell you what you don't need than sell you components that won't make a meaningful difference at this lift height.
What 35-Inch Tires Add to the Build
Most people doing a 3.5" lift are also moving to 35-inch tires. Here's what that means for the build — and what we factor in before we order anything.
Wheel Offset Matters
Running a 35 on the factory wheel creates rubbing on the upper control arm and fender liner at full turn and full droop. The right wheel offset — typically -12mm to -18mm backspacing depending on the specific tire — clears without a body lift or fender trim.
Tire Weight Changes Drivability
A 35-inch mud terrain tire is significantly heavier than a factory tire. That weight affects steering feel, fuel economy, and front end wear rates. We factor this into the component recommendations before we spec the build.
TPMS Reprogramming
New wheels and tires require TPMS sensor transfer or replacement and reprogramming. We handle this at install — it's not a separate trip to the dealer and it's not a separate line item surprise on your invoice.
Straight Pricing. No Surprises.
We're not going to give you a number and then add to it when you show up. A complete 3.5" JL lift with UCAs, track bar correction, extended end links, brake line extensions, and alignment runs between $3,200 and $5,500 depending on component selection.
ReadyLIFT, Rough Country Vertex, Rancho. Performs well for a daily driver and weekend trail truck. Full geometry correction included.

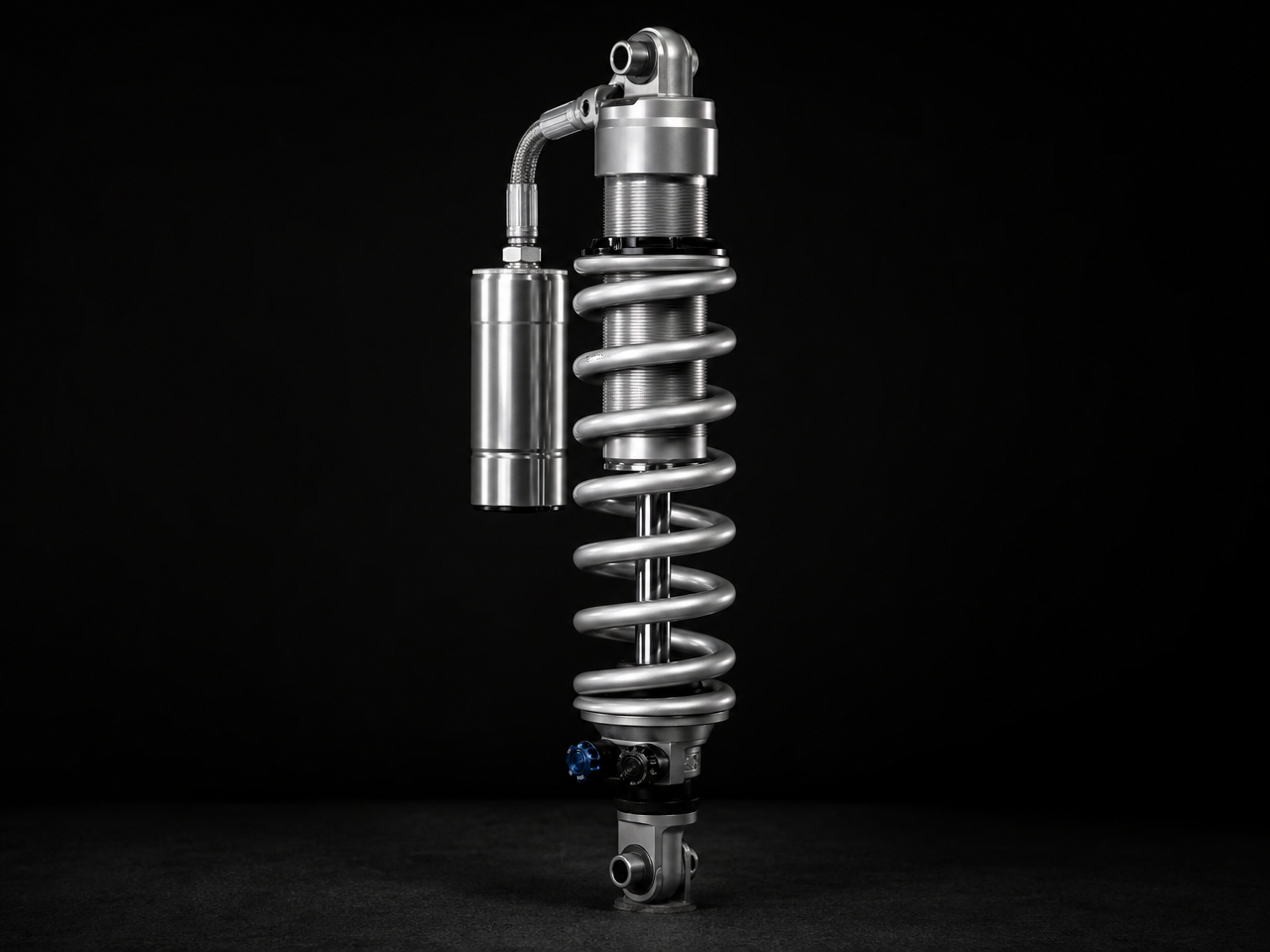

Fox, King, Bilstein. Built for a higher level of use. Same geometry correction, better damping and component longevity under demanding conditions.
ADAS — What You Need to Know Before You Lift a JL

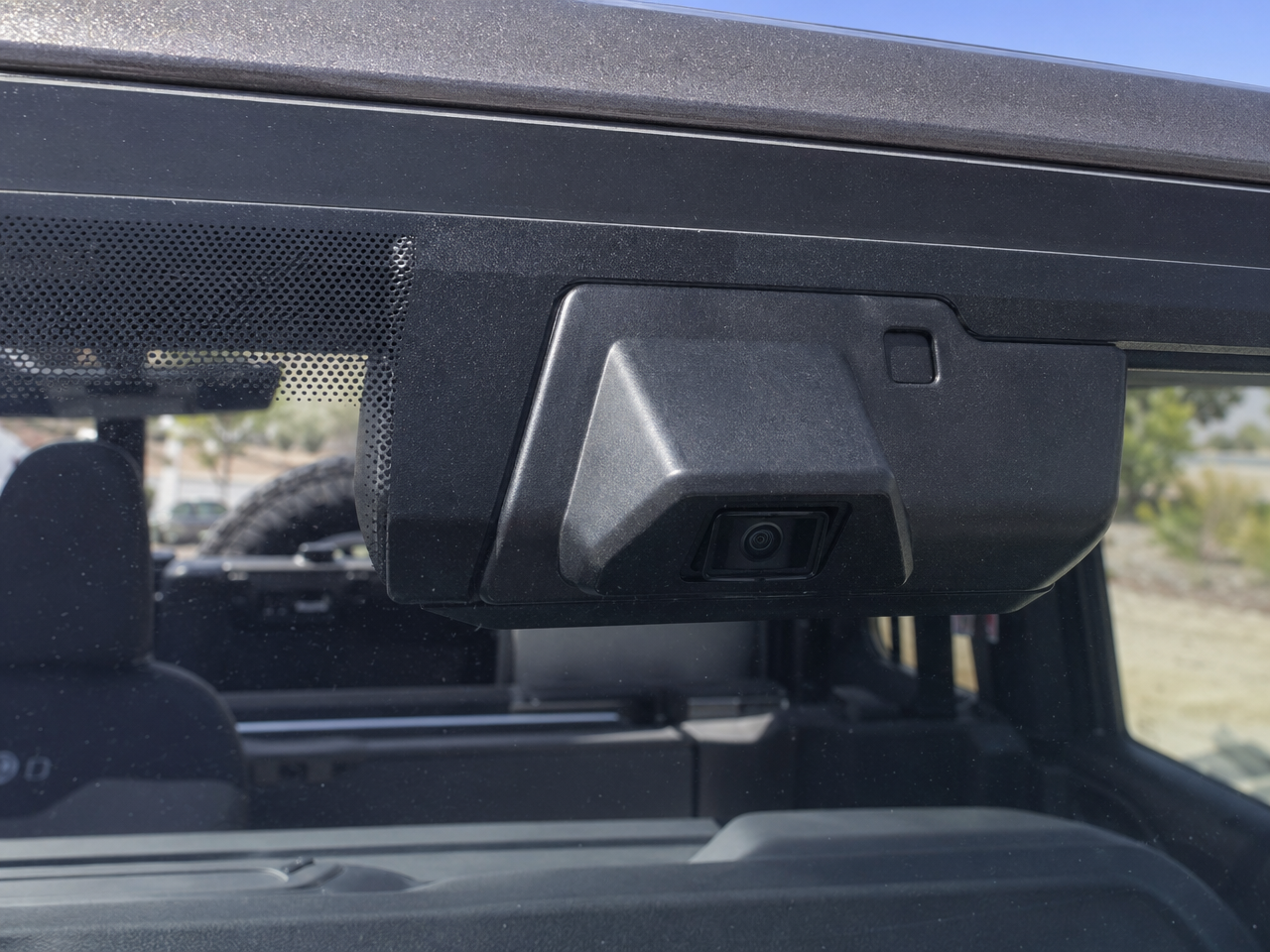

The 2018+ Jeep Wrangler JL has forward-facing cameras, blind spot monitoring, and adaptive cruise control systems that are sensitive to suspension height changes.
A 3.5 inch lift changes the aim of those sensors. An uncalibrated ADAS system on a lifted JL is not a safety feature — it's a liability. Lane keep assist that thinks you're drifting when you're not. Automatic emergency braking that triggers incorrectly. Adaptive cruise that doesn't see what it should. We recalibrate ADAS on every JL build that affects sensor position. This is not something we charge extra for and then surprise you with. It's in the quote from the start.
What the Build Process Looks Like
No surprises. No callbacks asking for more money. Here's exactly what happens from drop-off to pickup.
Pre-Install Inspection
Day 1. We inspect the existing front end — ball joints, tie rod ends, wheel bearings. If something needs to be addressed before the lift goes on, we tell you before we start.
Full Install
Day 1–2. Lift kit, UCAs, track bar correction, end links, brake lines, TPMS. Most JL 3.5" builds complete in one full shop day depending on kit and any pre-existing front end work.
Alignment & ADAS
Day 2. We align it, recalibrate ADAS sensors, drive it on city and highway, and confirm everything is tracking correctly before you see it again.
Pickup & Walkthrough
You get a walkthrough of everything installed and what to watch for in the first 500 miles. We check in at 500 miles — come back for a post-install inspection at no charge.
JL 3.5" Lift FAQ
Serving JL Owners Across Greater Houston
Our shop serves drivers from across the Houston metro and beyond. If you're driving a JL and want it built right, we've probably built one from your zip code already.
