Chromoly Axle Shafts & Axle Upgrades in Houston, TX
On 37s with a locker, a factory axle shaft is a when-not-if breakage — and a broken shaft on the trail is a recovery, not an inconvenience. We install chromoly shafts, full-float conversions, and axle trusses so the axle survives what the rest of the build can dish out.
Chromoly Axle Shafts Are Cheap Insurance on 37s
Here is the chain of physics nobody mentions when they sell you 37s: a bigger, heavier tire is a longer lever on the axle shaft, a locker sends a hammer-blow shock load through it when it bites, and the factory shaft was engineered for stock tires and an open diff. Stack those up and the shaft is the weakest link — and it usually lets go at the worst possible moment, miles from pavement.

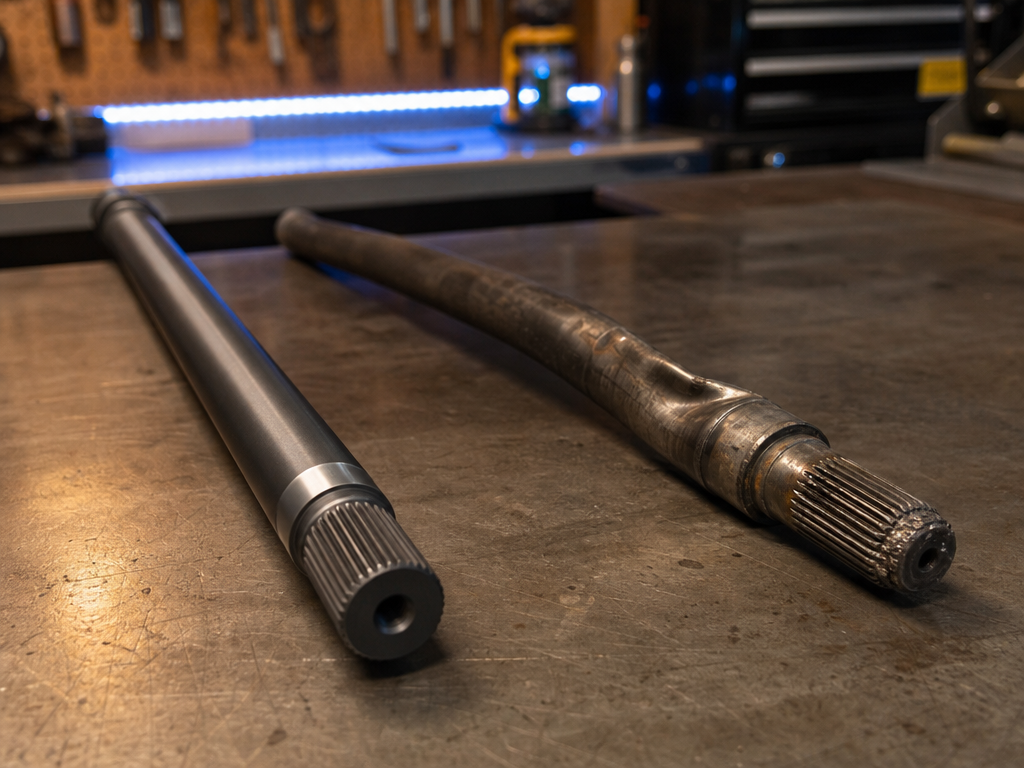

A chromoly axle shaft is made from a stronger alloy, with beefier splines and u-joints, specifically to take that abuse. It does not add power; it adds survival. On weaker axles like the Jeep Dana 30 front, chromoly is a "when" not "if" upgrade once you are on 37s — which is why we plan it into serious JK and Gladiator builds from the start.
And because the axle is already apart during a regear or locker install, that is the smart time to do the shafts and any truss work — once, not twice.
Axle Shaft, Full Float & Axle Truss Upgrades
Axle strength is a system — shafts, joints, bearings, and the housing all play a part. These are the four upgrades we do most, matched to how hard you wheel.
Chromoly Front Shafts
The front takes steering loads and front-locker shock, and on weaker axles it breaks first. Chromoly front shafts with upgraded u-joints or CV joints are the priority upgrade on a hard-wheeled rig running 37s and a front locker.
Chromoly Rear Shafts
The rear carries the drive load and the launch shock off obstacles. Chromoly rear shafts with stronger splines resist the twist that snaps factory shafts under a rear locker and big tires. Often paired with the front on a full build.
Full-Float Conversion
A full-float axle carries vehicle weight on the housing, not the shaft, so a broken shaft will not drop a wheel and you can often limp home. The serious-build and heavy-rig upgrade for reliability and trail safety.

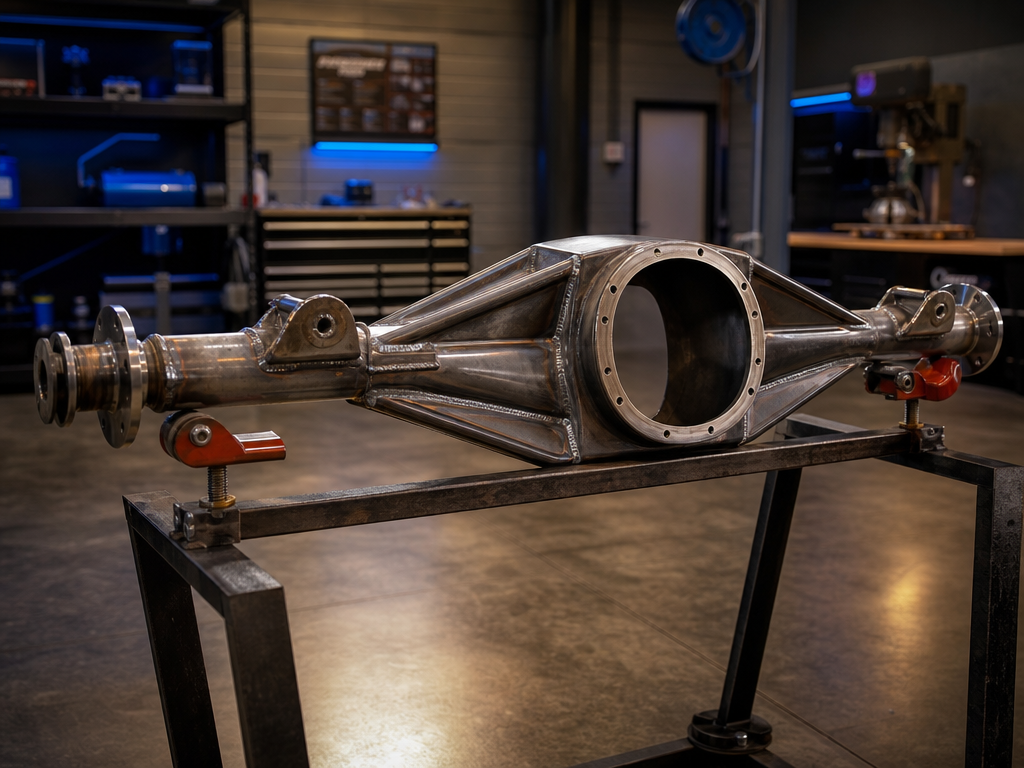

Axle Truss & Gussets
A welded truss reinforces the housing so it does not bend under big tires and hard landings — protecting your gear mesh, pinion angle, and an expensive regear. We weld trusses and gussets in-house on serious axle builds.
When You Need Axle Upgrades — and When You Don't
Axle work is essential on some builds and a waste of money on others. Here is the honest line.
You Need It If
- You run 37s or bigger, especially with a locker
- You wheel hard — rock, ledges, big launches
- Your platform has a known-weak axle (Dana 30, etc.)
- You have already broken a factory shaft
- You want trail reliability far from help
- You are regearing or adding a locker anyway
You Probably Don't If
- You are on 33s with an open or limited-slip diff
- You daily-drive and run mild trails and overland roads
- Your platform has a stout factory axle for your tire size
- You are not putting locker shock loads through it
Chromoly is cheap insurance exactly when you need it and wasted money when you do not. We will not upsell axle shafts onto a 33-inch overland rig that will never stress them. But if you are building toward 37s and lockers, doing the axles up front — while the diff is open — is far cheaper than a trail breakage and a second teardown.
Axle Work Done Right
An axle is only as strong as its weakest component, so upgrading shafts without addressing the joints, bearings, or housing just moves the failure point. A proper axle build looks at the whole assembly. Here is the bar we hold.
We install chromoly shafts and joints from brands like RCV, Yukon, and Nitro and fabricate truss and gusset work in-house — measured, welded, and set up correctly.
Shafts, Splines & Joints
Chromoly shafts pair with upgraded u-joints or CV joints so the whole driveline link is strong, not just the bar. We check spline engagement and clocking and re-grease for Houston heat so nothing becomes the new weak point.
Full-Float Benefit
On a full-float build, vehicle weight rides on the housing and bearings, leaving the shaft to drive only. We set bearing preload and seals correctly so the conversion delivers the reliability and limp-home safety it is meant to.
Truss & Gusset Welding
Trusses and gussets are welded clean to a prepped housing so the brace actually stiffens it without warping it. A straight, trussed housing keeps your gear setup alive under abuse.
How We Build Your Axles
Every axle job follows the same five-step path we use across the shop — the full build process covers the details.
Consult & Assess
We look at your axles, tire size, locker, and how you wheel, and find the weak link. No quote without it.
Spec & Quote
Shafts, joints, full-float, and truss work planned with any gears or locker to save labor.
Build & Weld
Shafts and joints installed, trusses and gussets welded, full-float set up — clean and in-house.
Set & Verify
Bearing preload, spline engagement, and clearances verified, fluids filled, and road-tested.
Deliver & Follow-Up
Walkthrough, documentation, and a re-check after first hard use so everything is holding.
Chromoly Axle Questions, Answered
Axle Upgrades Across Greater Houston, TX
We build and reinforce axles for drivers from every corner of the metro. Wherever you are coming from, there is a good chance we have already built one from your zip code.
